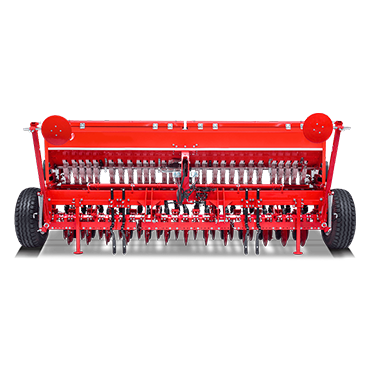

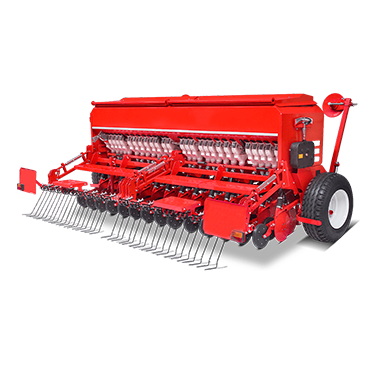

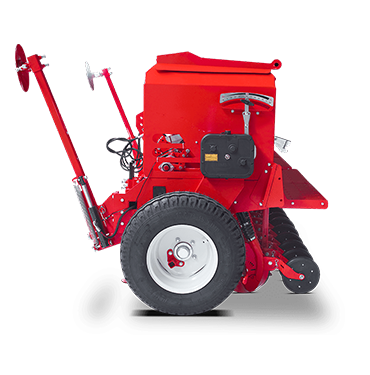

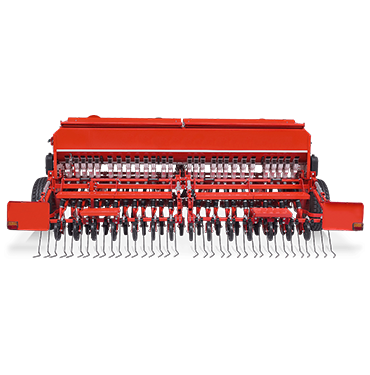

End Spring Axe Legged Pressure Wheel

Product Code Unit AHM-419 AHM-423 AHM-427 AHM-431 AHM-439 AHM-447
Number of Leg pcs 19 23 27 31 39 47
Inter-Row Distance mm 130 130 130 130 130 130
Operation Width mm 2500 3000 3500 4000 5000 6000
Handling Width mm 2735 3235 3735 4235 5350 6350
Handling Height mm 1500 1500 1500 1500 1500 1500
Seed Tank Volume lt 460 550 640 730 910 1090
Fertilizer Tank Volume lt 305 370 400 425 480 535
Tank Volume Without Fertilizer lt 750 950 1150 1350 1750 2150
Size of Tire   600-16 600-16 600-16 600-16 10.0-75/13 10.0-75/13
Operation Speed km/h 5-8 5-8 5-8 5-8 5-8 5-8
Weight kg 850 1000 1180 1290 1580 1860
Required Power hp 70+ 80+ 100+ 110+ 130+ 160+
